LQFP48
In developing your designs, please ensure the datasheet.
| Mounting | Surface Mount | |
|---|---|---|
| Pins | 48 | |

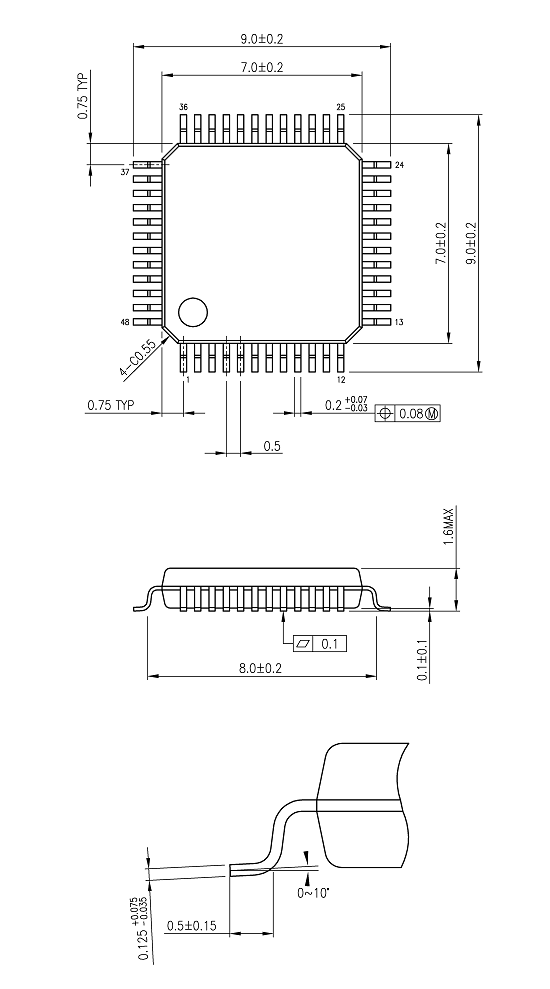

| Package Dimensions (mm) / Land pattern dimensions for reference only (mm) |

|
|
| Package | LQFP48-P-0707-0.50C | |

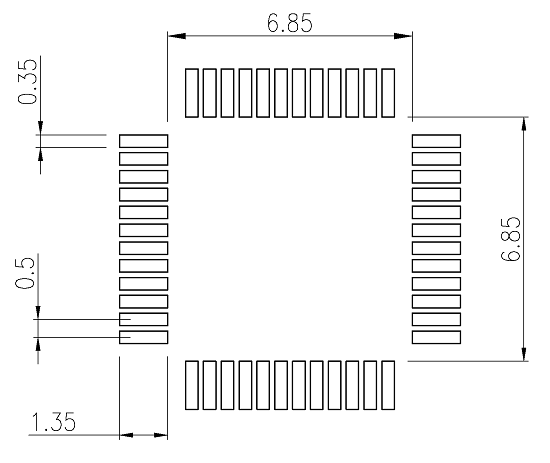

| Land pattern | LQFP48-P-0707-0.50C_LP | |
| Thermal resistance (℃/W) | 61.3 | |
| Packing Method | Embossed Tape / Tray Packaging | |
| Minimum Quantity | 2000 pcs/Reel | |
| Tape Width (mm) | - | |

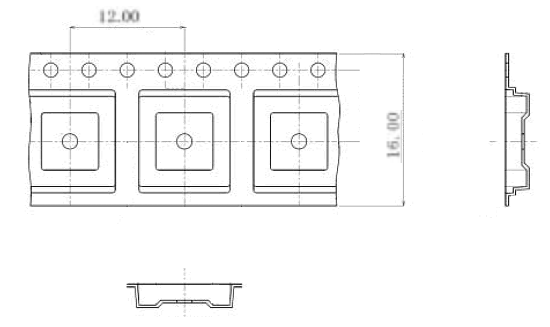

| Tape Dimensions (mm) |
|
|
| Minimum Quantity | 250 pcs/Tray | |

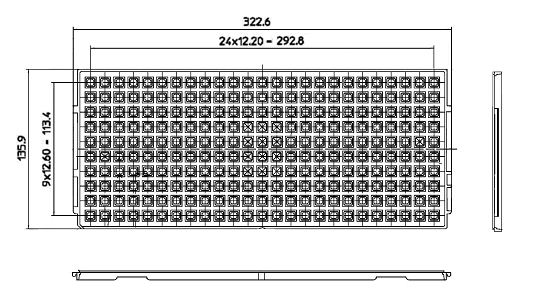

| Tray Dimensions (mm) |
|
|
| Semiconductor Package Mount Manual |
MountingGuide | |
