HQFP144
In developing your designs, please ensure the datasheet.
| Mounting | Surface Mount | |
|---|---|---|
| Pins | 144 | |
|
Package Dimensions (mm) / Land pattern dimensions for reference only (mm) |

|
|

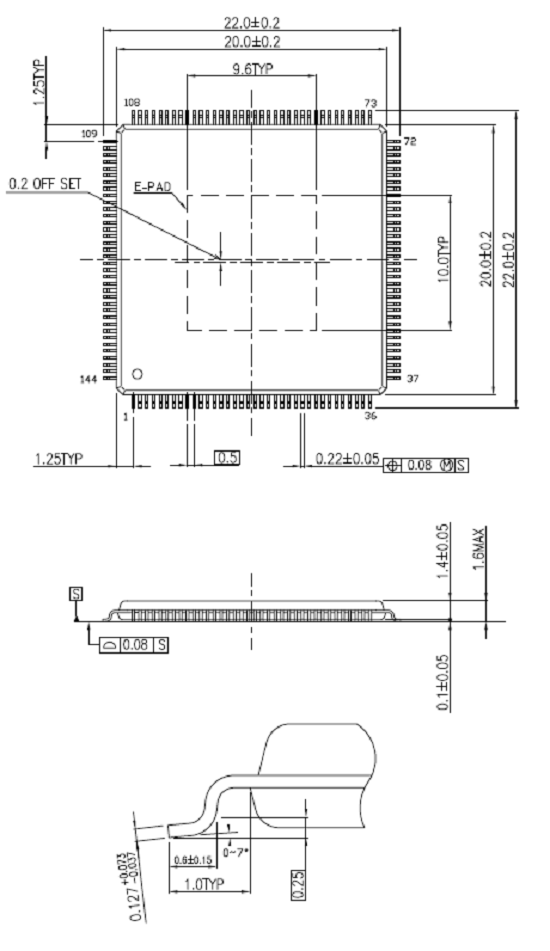

| Package | P-HQFP144-2020-0.50-003 | |

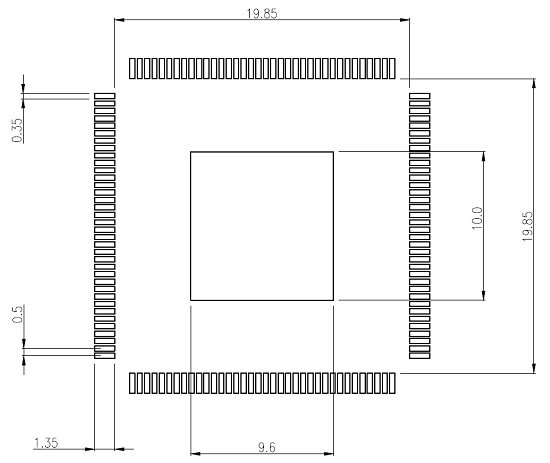

| Land pattern | P-HQFP144-2020-0.50-003_LP | |
| Thermal resistance (℃/W) | - | |
| Packing Method | - | |
|
Semiconductor Package Mount Manual |
MountingGuide | |
